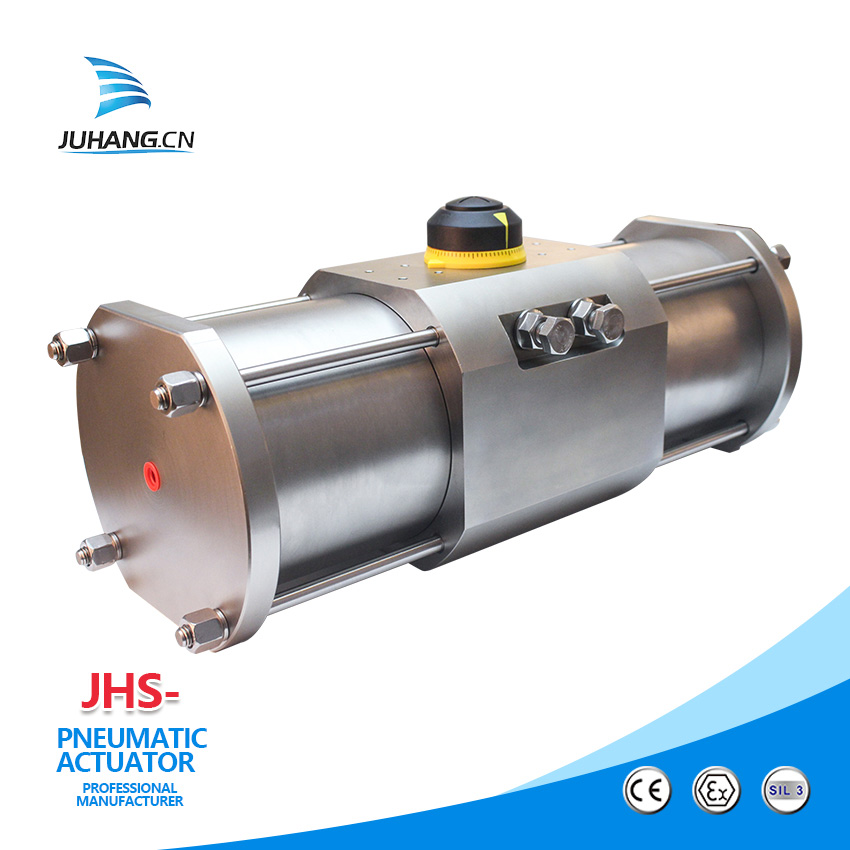

SUS316 Stainless Steel Pneumatic Actuator

SUS316 Stainless Steel Pneumatic Actuator

Juhang has advanced processing equipment, high-precision CNC machines, a four-axis machining center, and advanced technology, which can guarantee the high quality of precision products.The company also has laboratories for high-precision testing instruments.Sophisticated technology and a strict qual......

Send Inquiry

Product Description

Juhang has advanced processing equipment, high-precision CNC machines, a four-axis machining center, and advanced technology, which can guarantee the high quality of precision products.The company also has laboratories for high-precision testing instruments.Sophisticated technology and a strict quality management system, furthermore gathering professional technical elites and a world-leading technology team, taking advantage of new technology, new processing, and new materials to ensure the stability and reliability of our products.

Product Parameter (Specification) of the SUS316 Stainless Steel Pneumatic Actuator

Model:JHS52-JHS210 SR

Structure:Rack and pinion structure

Application: ball valve, butterfly valve, plug valve and other valves

Supply Pressure Air: 3–8 bar

Output torque: 1 N.m.–1600 N.m - 1600 N.m

Cylinder body material: stainless steel.

Control the air source:Through filtered compressed air, there is no need lubricate oil. The oil must suit for NBR when in lubricated condition.

Flange standard:ISO 5211 / DIN3337

Operating temperature: Standard -20℃~80℃

Low temperature -40℃~80℃

High temperature: -20℃~120℃

Rotate stroke: 0 - 90°(+/-5°)

Product Features of Stainless Steel Pneumatic Actuator

SUS316 stainless steel pneumatic actuators have the below characteristics:

●Structure: compact rack and pinion pneumatic actuator.

●Used for angular stroke valves, ball valves, butterfly valves, plug valves and other valves.

●Mounting flange in accordance to DIN/ISO5211,DIN3337,control valve with NAMUR standard.

●Cylinder body material: stainless steel.

●Certificate obtained: ATEX, CE, SIL3, ISO9001:2015 certificate.

●High-end products, excellent quality, and a complete certification system.

●All products in the factory undergo rigorous testing, and each individual is marked with a tracking code for quick identification and complete tracking service.
